Project: BARGE – PARTIAL SHELL
Location: Cerro de Pasco
Client: MINA EL BROCAL
Project Description:

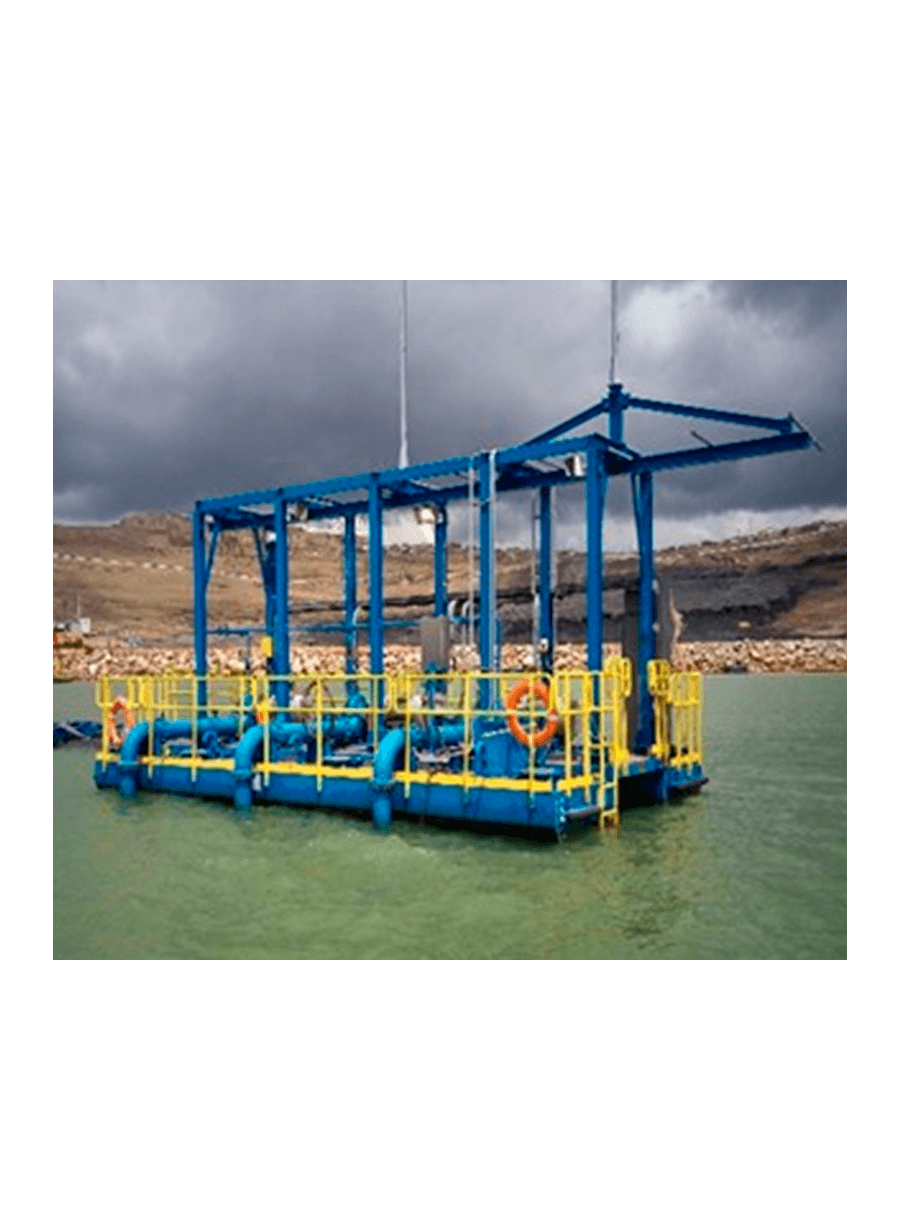

- Multiple Barge 3x100HP with Lifting System and Monorail.
01 metal barge with square-section floats measuring 9.50 x 6.00 x 1.2 m., with 08 compartments and 04 simple hatches with 4 points, ribbed floor, safety rails, structural steel platform, and monorail structure for pump-motor removal.
Automatic Priming System composed of liquid ring vacuum pumps coupled to a 7.5 HP electric motor, 3500 RPM, generating a Venturi effect for effective priming.
01 cargo barge measuring 3.50 x 3.50 x 0.80 m., including 04 compartments with 04 simple hatches with 4 points, ribbed floor, safety rails, and outboard motor.
03 Goulds Split Case pumps (model 3410M); coupled to a 100 HP Tatung NEMA PREMIUM® EFFICIENCY motor, Voltage 460V-60Hz.
